SPPs Offer an "All-STAR" Lineup

Entire Line of Heil® Small Packaged Products
are Now ENERGY STAR
®-Qualified

Heil® offers an "All-STAR" lineup of small packaged products. Now, the entire line of Heil small packaged products, including the PHR5 packaged heat pump model, PAR5 packaged air conditioner and PGR5 packaged gas/electric unit, are ENERGY STAR®-qualified. All models meet or exceed the ENERGY STAR efficiency qualifications for light commercial/residential small packaged units.

This is great news for energy-conscious home or building owners who are interested in potential utility rebates or financing programs with ENERGY STAR requirements. Click here to see if there are any current rebates in your area.

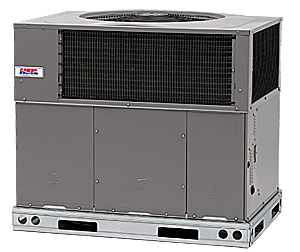

Heil® PHR5, PAR5 or PGR5
Small Packaged Product

The Heil PHR5 packaged heat pump, PAR5 packaged air conditioner and PGR5 packaged gas/electric units offer the following benefits:

  • All models are now ENERGY STAR-qualified
  • High efficiency ratings:
    • PHR5: The new 2- and 2.5-ton PHR5 models now achieve up to 15 SEER, 12 EER, and an increased heating performance of 8.2 HSPF
    • PAR5: Achieves up to 16 SEER and 12.5 EER
    • PGR5: Achieves up to 81% AFUE, 16 SEER and 12.5 EER
  • Quiet operation with a sound rating as low as 68 dBA (2-ton PHR5 unit)
  • A two-stage Copeland Scroll compressor
  • A high-efficiency ECM blower motor
  • A corrosion-resistant, tin-plated copper evaporator coil
  • An enhanced dehumidification feature on high-stage cooling with use of a dehumidistat
  • Three separate access panels to the compressor, blower and control compartments for easy maintenance and installation
  • Painted, galvanized steel cabinet with hail guard tight-wire grilles
  • Warranty details:
    • Single-phase models are covered by a five-year No Hassle Replacement™ limited warranty, a ten-year parts limited warranty (including compressor and coils) and a lifetime limited heat exchanger warranty (PGR5 only).1
    • Three-phase models are covered by a five-year compressor limited warranty, a one-year parts limited warranty (including compressor and coils) and a ten-year limited heat exchanger warranty (PGR5 only).1

And Yes. The New PHR5 Models are Tougher, More Quiet
and Easier to Install, Service, and Sell.

That's right. We added new PHR5 2- and 2.5-ton models to the family and they are "All-STARs" as well. With an increased heating performance of 8.2 HSPF, the new ENERGY STAR designation, and more quiet operation (as low as 68 dBA for the 2-ton unit), the new PHR5 2- and 2.5-ton models will replace the current single-phase PHR5 2- and 2.5 ton units and three-phase PHR5 2.5-ton units.


Click here to download the product specification sheet for the new Heil PHR5 units. And, be sure to ask your distributor about these new models. You won't want to miss out on the features these "All-STAR" SPPs have to offer!

1 With timely registration. For owner occupied, residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
